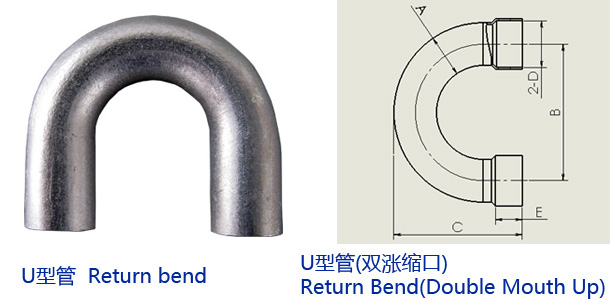

Return Bend Home | HVAC component | Aluminum Fittings | Return Bend

Part No. Name Material Dimensions(British System) Dimensions(Metric System) Inquiry
AU -0008 Return Bend Al.Pipe 5/16' 7.94
AU -0010 Return Bend Al.Pipe 3/8” 10
AU -0013 Return Bend Al.Pipe 1/2“ 13
AU -0016 Return Bend Al.Pipe 5/8” 16
AU -0019 Return Bend Al.Pipe 3/4“ 19.05
AU -0029 Return Bend Al.Pipe 1-1/8' 28.6
AU -2019 Return Bend(Double Mouth Up) Al.Pipe 3/4“ 19.05
AU -2029 Return Bend(Double Mouth Up) Al.Pipe 1-1/8' 28.6
AU -2008 Return Bend(Double Mouth Up) Al.Pipe 5/16' 7.94
AU -2010 Return Bend(Double Mouth Up) Al.Pipe 3/8” 10
AU -2013 Return Bend(Double Mouth Up) Al.Pipe 1/2“ 13
AU -2016 Return Bend(Double Mouth Up) Al.Pipe 5/8” 16
